Axion Pro LED Fine Pixel Pitch Video Display Series

The Fine Pixel Led Video Display



The Axion PRO Series cabinets have a native aspect ratio of 16:9. When 16:9 cabinets are arrayed with equal cabinet height & width (i.e. 10x10 or 8x8), the entire display will retain a 16:9 viewing aspect ratio. Axion is available in pixel pitches of P0.94, P1.25, P1.56, P1.875, and P2.5.


Axion is fully front-serviceable. There are no external jumpers on the rear, making this cabinet ideal for wall mounting. Axion cabinets are designed for wall mounting and can be recessed into a wall. At only 2.28” deep, the Axion cabinet can be wall mounted to meet ADA requirements.  Pre-threaded mounting locations make installation simple. Magnetic LED modules make module replacement quick & easy.

Additional Features

  • IC drivers allow for a customizable refresh & scan rates.

  • Receiving cards allow for custom gray levels from 14-18 bits.

  • Redundant power & data are available.

  • No internal ribbon cables. There is a single cable-less PCB connection for data & power.

  • 90 Degree angle cabinets are an available option.

  • Seam brightness compensation is a standard feature.

  • High gray scale & refresh rates.

  • Resin-encapsulated LED modules are available for increased durability.

  • Half-size cabinets are available.

  • Smart module data retention.

  • Superb color & brightness uniformity.

  • DC-DC Remote Power Supply available.

  • Low latency available- Reduction from 4 frames to .5 frames.

  • Contrast Ratio: 3000:1


Let’s discuss your project

Call us today and let us help you find the perfect LED display for your next project.

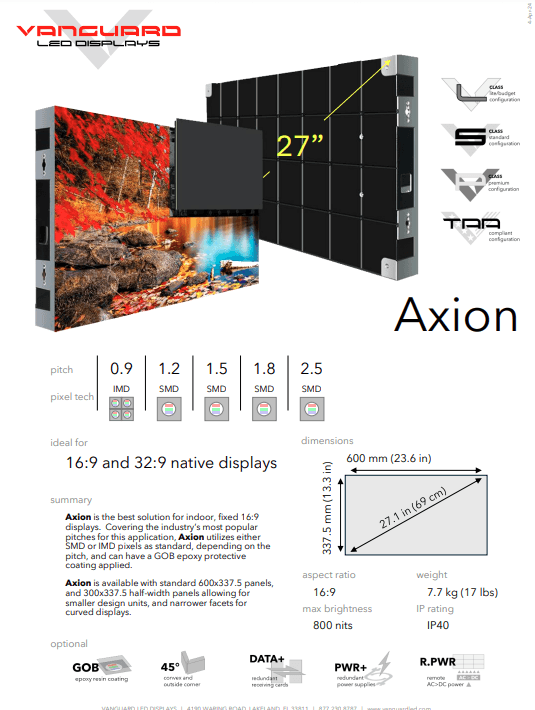

Axion PRO Series Technical Specifications

Vanguard LED Displays offer a five (5) year warranty and 5% spare parts.

This product is TAA approved and is suitable for DoD, Federal, State, and Local Agency Simulation Training Simulations as well as Maritime and large aircraft trainers.

taa approved

With TAA Compliance

  • Everlight LED’s

  • Meanwell Power Supplies

  • Macroblock IC Driver


Without TAA Compliance

  • Nationstar Gold LEDs

  • Meanwell Power Supplies

  • Marcoblock IC Drivers
